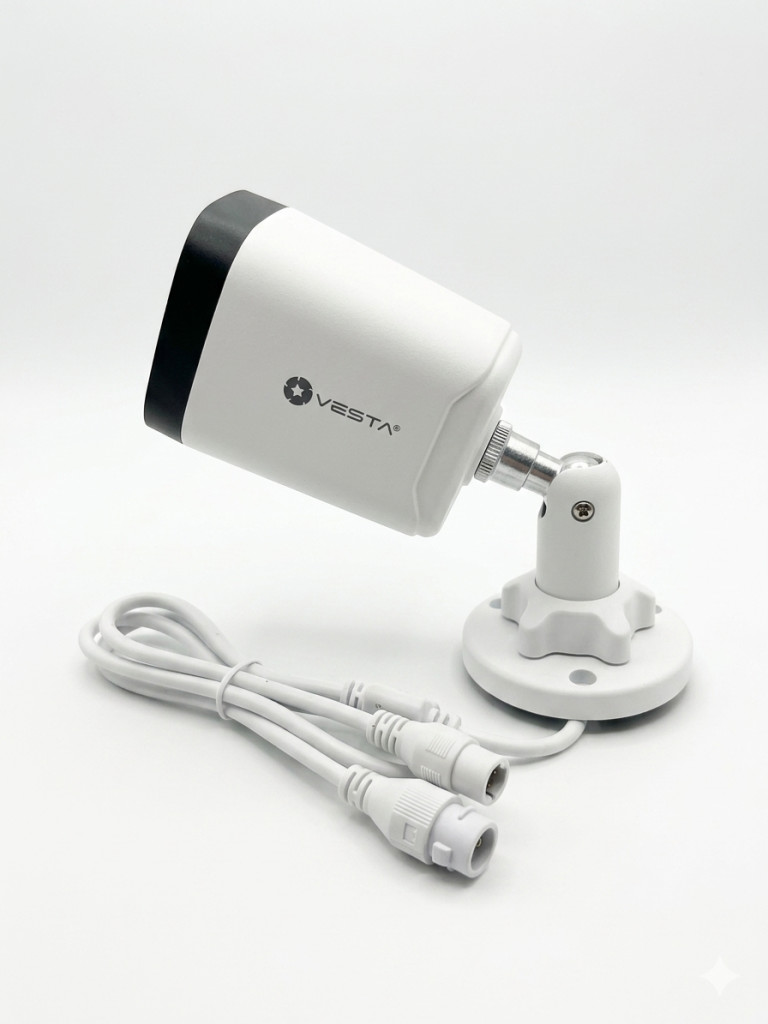

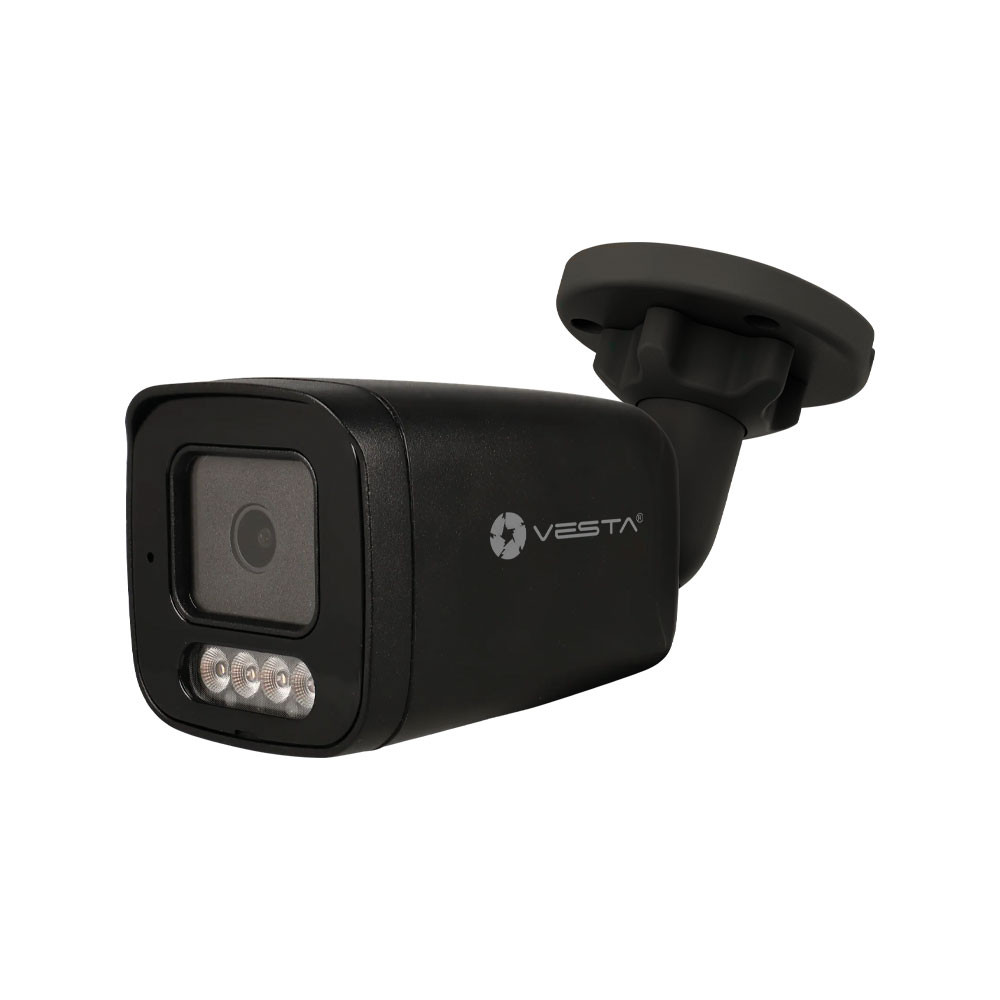

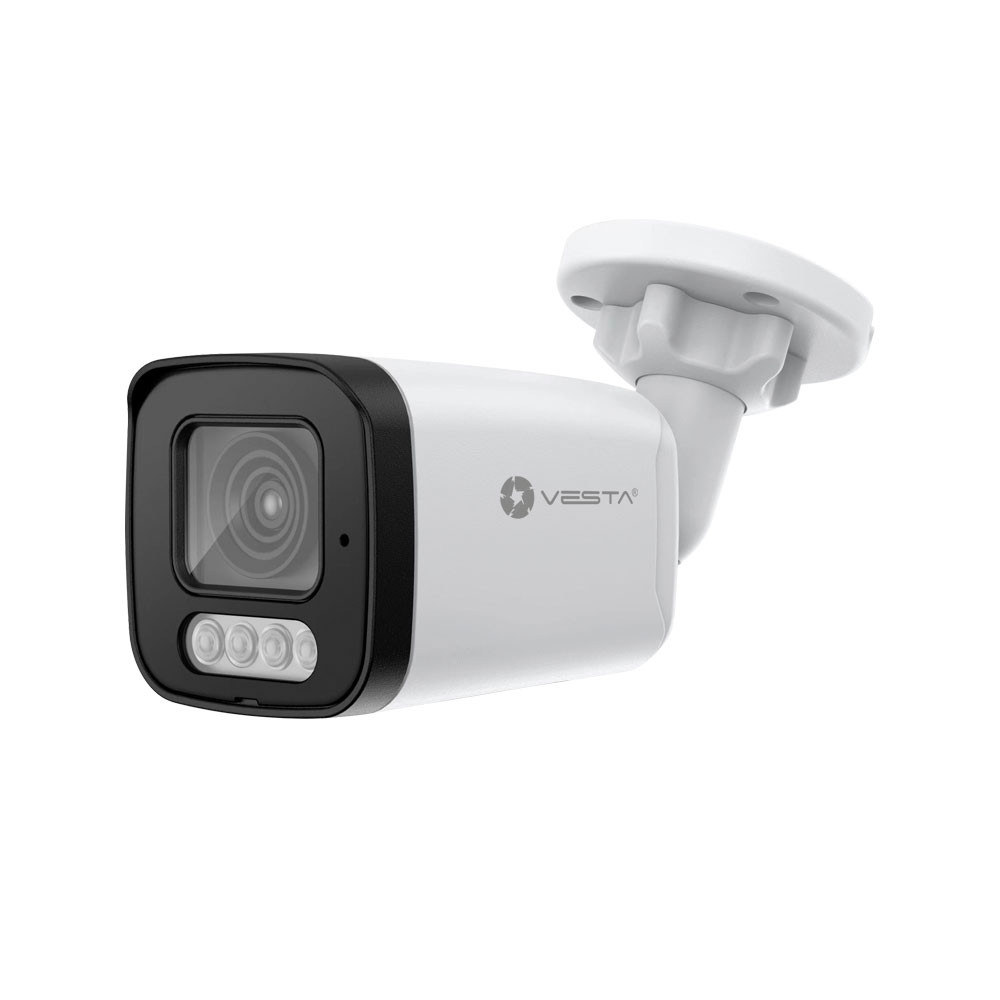

Outdoor 4MP VESTA-B24-L Advanced Video Smart Dual Light Lite AI IP camera

Technical features

• 4 megapixel 1/2.8" CMOS sensor
• Up to 4MP resolution
• Day/night mode
• 0.006 lux and 0 lux with illumination activated
• Smart Dual Light with 2 x 40m IR LEDs and 2 x 40m warm light LEDs
• Fixed lens 2.8 mm

Video Stream

• Video formats H.265, H.264
• Stream 1: 4MP@25 ips
• Stream 2: D1@25 fps
• Stream 3: 720P@25 fps

Functionalities

• Image modes BLC, HLC, digital WDR, 3D-NR and mirror image modes
• White balance
• Automatic and manual gain control
• 4-zone video sensor
• White light deterrence

Intelligent functions

• Motion detection with person and vehicle classification
• Intrusion detection with person and vehicle classification
• Line crossing detection with classification of persons and vehicles

Audio

• Built-in microphone

Storage

• MicroSD card slot up to 256GB (card not included)

Communication interface

• Reset button

Network

• RJ45 10/100 Base-T network interface
• Network protocols TCP/IP, UDP, HTTP, DHCP, DDNS, FTP and UPNP
• Onvif, CGI, P2P, SDK and API support
• Compatible with IE8 and later browsers
• Management software
• Compatible with IOS and Android mobile devices

Power supply

• 12V DC or 802.3af PoE power supply
• Maximum power consumption of 3 W

Environmental

• Storage temperature from -40°C ~ +60°C
• Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
• Operating relative humidity less than 95%
• IP67 degree of protection

Physical characteristics

• Metal housing and plastic pedestal
• Dimensions: 70 (W) x 70 (H) x 170 mm
• Net weight: 420 g

Contents

• VESTA Advanced Video Smart Dual Light Lite AI 4MP Outdoor IP Camera IPC-B24-L (IPC-B24-L)

Certifications and regulations

• Equipment complies with the NDAA requirements of the National Defense Authorization Act Section 889.
