Sharp Full HD image quality day and night
The camera has an advanced 1/2.8” CMOS sensor that provides video recording with a resolution of up to 2MP (1920×1080).
Key benefits
• Full HD 1080P resolution
• Excellent image quality in low light conditions
• Day/night automatic mode
• Modern H.265 video compression
The camera provides a detailed image even at 0.01 lux of brightness.
________________________________________
Smart Dual Light – intelligent night surveillance
Smart Dual Light technology intelligently combines infrared and white LED lighting.
Built-in lighting
• 30-meter IR night vision
• 30-meter white LED lighting
Thanks to this:
• excellent surveillance is ensured even in complete darkness,
• color night vision is achieved,
• effective deterrent lighting can be used.
___________________________________________________
Modern video technology
Supported video formats
• H.265
• H.264
Stream support
• Primary stream: 2MP @ 20 fps
• Secondary stream: D1 @ 25 fps
H.265 compression reduces storage space and network bandwidth usage.
________________________________________
Advanced image enhancement features
The camera supports several professional image enhancement technologies:
• BLC backlight compensation
• Digital WDR
• 3D noise reduction
• Mirror mode
• Automatic and manual gain control
• White balance management
________________________________________
Built-in microphone
The camera has an integrated microphone, so it is suitable for recording not only video but also audio.
________________________________________
Local storage on MicroSD card
The device supports MicroSD memory cards up to 256 GB in capacity.
________________________________________
Network compatibility and remote access
Network connection
• RJ45 10/100 Base-T Ethernet port
Supported protocols
• TCP/IP
• UDP
• HTTP
• DHCP
• DDNS
• FTP
• UPNP
Compatibility
• ONVIF
• CGI
• P2P
• SDK
• API support
Mobile support
Compatible with:
• iOS
• Android devices.
________________________________________
Easy installation with PoE support
The camera can be powered by:
• 12V DC power supply,
• or via 802.3af PoE connection.
Advantages
• simpler cabling,
• quick installation,
• stable power supply.
Maximum consumption: only 3W.
________________________________________
Weatherproof outdoor design
The camera with a robust design is designed for outdoor use.
Protection
• IP67 dust and water resistance
• Metal housing and durable design
• Extreme designed for weather conditions
Operating temperature
Between -20°C and +60°C.
________________________________________
Technical data
Feature Value
Sensor 1/2.8” CMOS
Resolution 2MP (1920×1080)
Lens 2.8 mm F2.0
Night vision 30m IR + 30m white light
Video compression H.265 / H.264
Microphone Built-in
SD card max. 256 GB
Network RJ45 10/100
Power supply 12V DC / PoE
Protection IP67
Dimensions 65 × 65 × 155 mm
Weight 370 g
_______________________________________
NDAA compliant professional security solution
The device meets the requirements of NDAA (National Defense Authorization Act Section 889), so it can be safely used in corporate and professional environments.
________________________________________

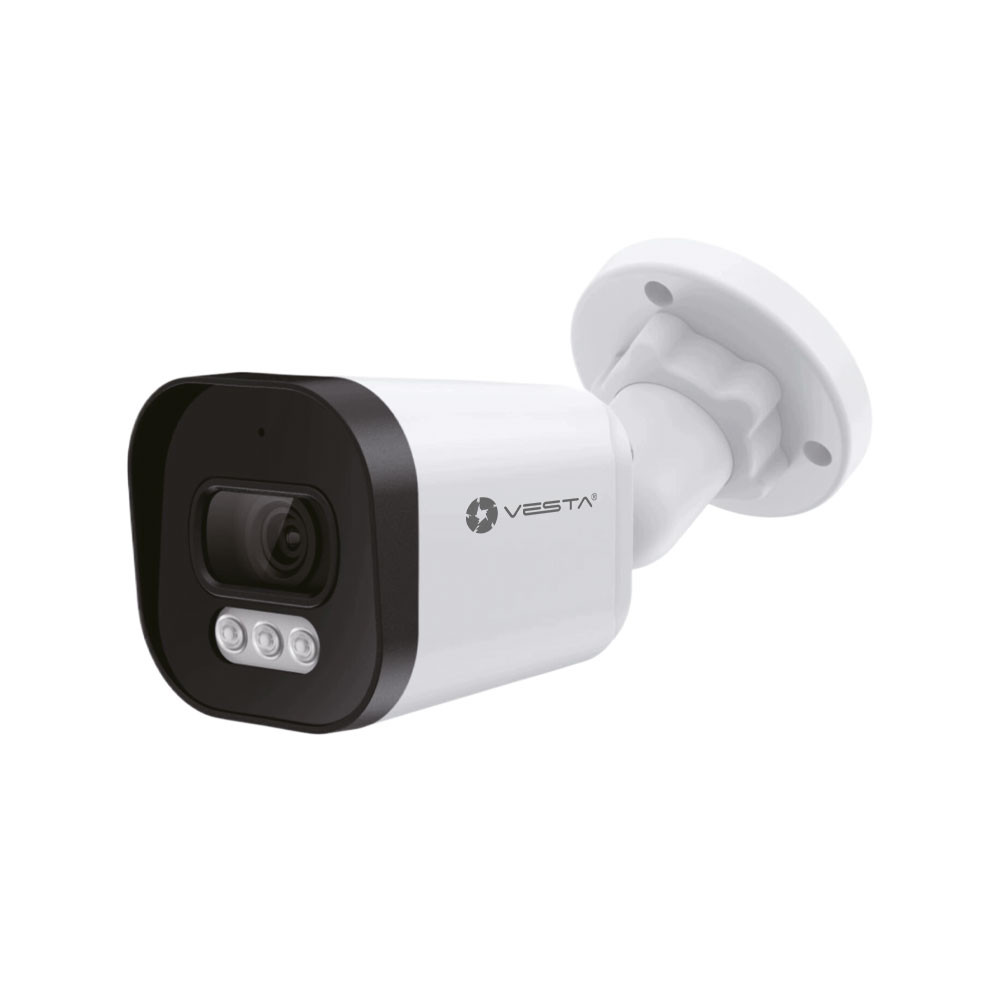

Why choose the VESTA IPC-B12-E IP camera?
The VESTA IPC-B12-E is the perfect choice for:
• family homes,
• shops,
• offices,
• outdoor surveillance,
• modern PoE systems,
• cost-effective security solutions.
